How to Install a 20W LED Post Light on a 5.91″ Wooden Fence or Deck Post: A Spring 2026 DIY Guide

Spring 2026 is in full swing, and across the US, homeowners are firing up grills, staining decks, and getting yards ready for Mother’s Day and Memorial Day weekend. If your 4×4 (actual 5.91″) wooden fence posts or deck posts look a little bare after sundown, the easiest upgrade you can do in one Saturday afternoon is installing a modern LED outdoor post light. This step-by-step installation guide shows you exactly how to fit the PLUSLED 20W 3000K Modern Black Outdoor Column Lamp on top of your existing 5.91″ x 5.91″ wooden posts — no cutting, no custom brackets, just a clean, ETL-certified upgrade that will light up your backyard for years.

Why Install Outdoor Post Lights This Spring?

According to home improvement trend data for spring 2026, outdoor lighting is one of the top three DIY projects American homeowners tackle before Memorial Day weekend. There are three big reasons:

• Safety and visibility: A well-lit fence line or deck perimeter reduces trip hazards and deters nighttime trespassers.
• Curb appeal and home value: Real-estate surveys consistently show that exterior lighting boosts perceived property value faster than almost any other <$200 upgrade.
• Entertaining season: Memorial Day barbecues, Father’s Day cookouts, and July 4th parties all happen outdoors — and they run into the evening.

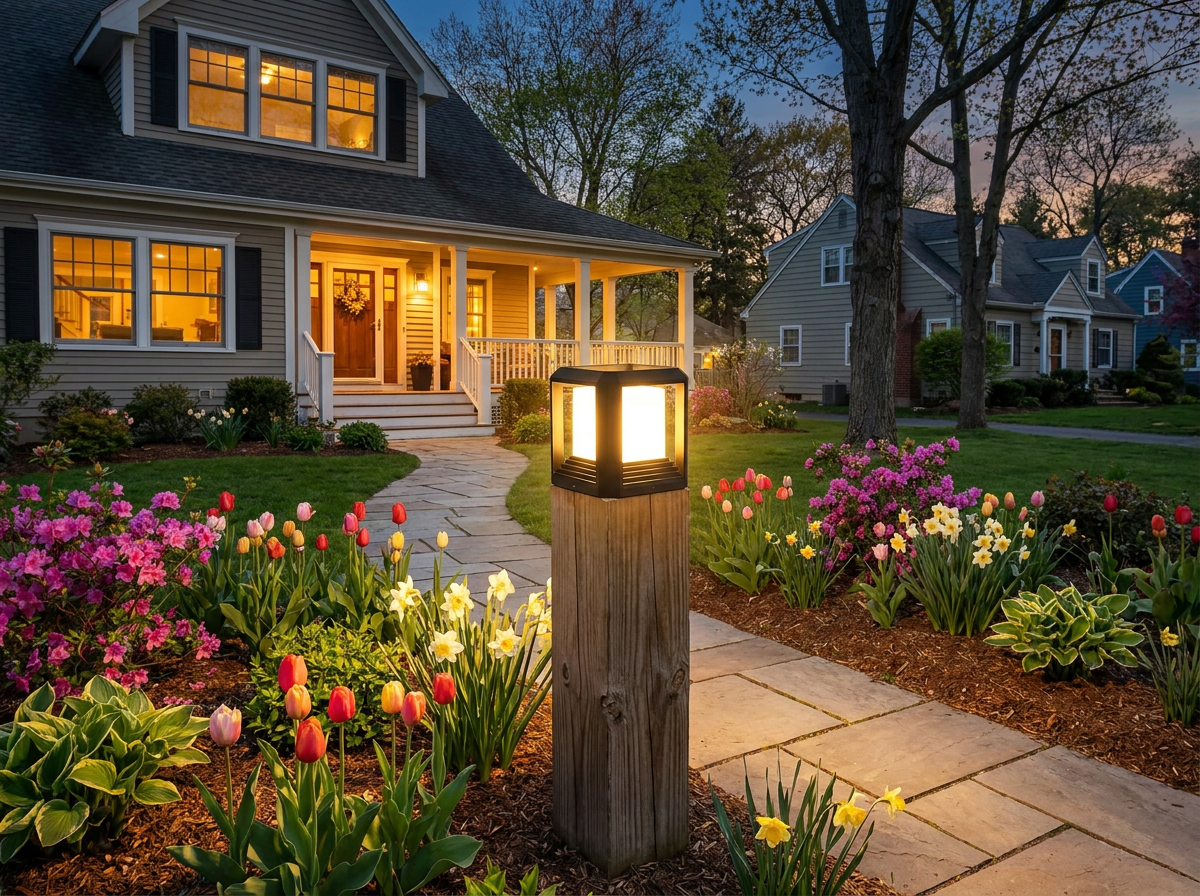

The PLUSLED 20W Modern Black Outdoor Post Light is purpose-built for wooden fence and deck posts measuring 5.91″ x 5.91″ (standard 4×4 treated lumber once dimensioned and wrapped). Its square lantern design fits flush, the IP65 waterproof rating handles spring rain, and the 3000K warm-white glow creates the perfect ambient lighting for entertaining without being harsh on the eyes.

Tools and Materials You’ll Need

Before you start, gather everything in one spot. A typical installation takes about 45–60 minutes per post once your wiring is pre-run.

• PLUSLED 20W Outdoor Post Light (one per post)
• Cordless drill with Phillips + 1/4″ hex bit
• Outdoor-rated 14/2 or 12/2 low-voltage wire (or 120V UF-B cable if hardwiring)
• Wire nuts or waterproof push-in connectors (gel-filled is best for outdoor use)
• Silicone sealant (clear, paintable)
• Level (a 6″ torpedo level works fine)
• Pencil for marking
• Wire strippers
• Safety glasses and gloves

Step 1: Turn Off Power and Plan Your Layout

Safety first — always kill the breaker feeding the outdoor circuit before touching any wiring. Test the wire with a non-contact voltage tester before stripping anything. Next, walk your fence or deck perimeter and decide how many posts you want to light. For an average American backyard deck, every other post (roughly 6–8 feet apart) gives a beautifully even wash of light without feeling like an airport runway.

Step 2: Run Your Wire Up the Post

For a clean look, run the cable up the inside corner of the post where the fence pickets or deck balusters meet. Use insulated cable staples every 18 inches. Leave about 6 inches of extra wire at the top — you’ll need that slack to make the final connections inside the post light’s base.

If you’re working with a hardwired 120V setup, bring the cable up through a drilled hole in the center of the post cap (a 1/2″ spade bit is ideal). Seal the hole with silicone once the wire is pulled through to keep rain out.

Step 3: Attach the Mounting Base

The PLUSLED 20W post light ships with a pre-attached square base flange and mounting hardware. Center the base on top of your 5.91″ wooden post, pass the wire through the center hole, and mark the four screw positions with your pencil. Pre-drill pilot holes (3/32″ bit) so your deck screws don’t split the post cap, then drive the included screws until snug — don’t over-tighten or you’ll crack the treated lumber.

Step 4: Wire the Fixture

Strip about 3/4″ of insulation from each conductor. Match black-to-black (hot), white-to-white (neutral), and green/bare copper to the ground terminal on the fixture. Twist each pair clockwise, cap with a waterproof wire nut, and tuck everything neatly into the base cavity. A dab of dielectric grease on the connections is cheap insurance against spring humidity.

Step 5: Seat the Lantern and Seal It

Lower the lantern body onto the base, align the keyed slots, and tighten the set screws by hand. Run a thin bead of clear silicone around the seam where the base meets the wooden post — this keeps water from wicking down into the post cap and rotting your 4×4 over time. Wipe any excess with a damp rag.

Step 6: Restore Power and Test

Flip the breaker back on and hit the switch. All PLUSLED 20W fixtures are ETL-certified and tested before shipping, so you should see that warm 3000K glow immediately. If one fixture doesn’t fire, recheck your wire nuts — 95% of install issues are loose neutrals.

Pro Tips for a Better Finish

• Install all fixtures before staining or painting the fence — you can cut in cleanly around the base.
• Add a smart switch or photocell timer so the lights come on at dusk automatically.
• Keep two spare wire nuts and a tube of silicone in your garage — Memorial Day thunderstorms happen.
• If you live in a coastal state (Florida, Carolinas, California), apply a second bead of silicone after the first rain to seal any micro-gaps.

Ready to Light Up Your Backyard?

You’ve got a Saturday, a cordless drill, and a deck that deserves to look amazing for Memorial Day weekend. The PLUSLED 20W Modern Black Outdoor Post Light is the fastest, cleanest upgrade you can make to your 5.91″ wooden fence or deck posts — ETL-certified, IP65 waterproof, and backed by PLUSLED’s spring 2026 quality guarantee. Shop the PLUSLED 20W outdoor post light on Amazon today, and transform your backyard before the first barbecue of the season.
